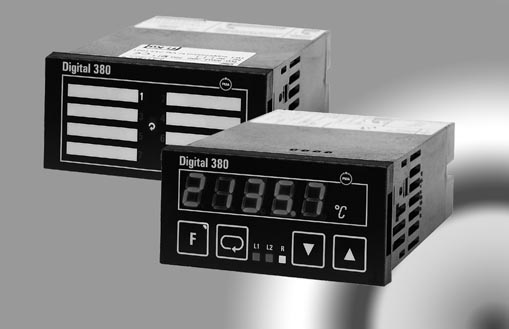

Digital 380

Digital Indicator

数字指示器

further information on request

	Data sheet
	Manual

• Bright 5-digit display in red or green
• 红色或绿色5位高亮度显示

• Universal input for 29 sensor types and ranges
• 通用输入适用于29种传感器


• Galvanically isolated retransmission output
• 电流隔离输出


• Automatic channel selector for 8 freely-configurable input signals
• 自动通道选择器适用于8路自由组态输入信号

Applications 应用
Furnaces, ovens, burners and boilers
Combustion technology
process engineering
Flow measurement
Data acquisition

Main attributes 主要属性
Measured value freely scalable
Filter, square root, square, ln, lg, e-function
Characterizer with 16 segments
Integrating function, differentiator, sample & hold, taring, low-pass filter, scale (ax + b), filter with operating range (bandwidth)
Digital input or function key controls one function
Two functions selectable
Maximum and minimum values are always stored and may be displayed on the front
Configurable function key
Galvanically separated transmitter power supply
