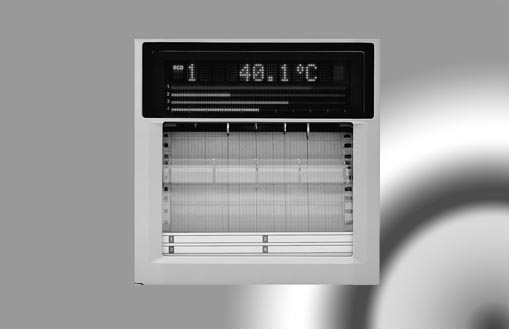

KS 3540

Line recorder

	Data sheet

• Simple, interactive operation and configuration
• 简单的交互式操作和组态


• Alpha-numeric print-out of measured values and messages
• 测量值和信息打印


• Universal inputs dc voltage, dc current, thermocouples, resistance thermometers and contacts
• 通用输入：直流电压，直流电流，热电偶，热电阻和触点


• Option: mathematic functions, plug-in memory card, interface RS 422A, remote control, alarm relays
• 选项：数学计算功能，插入式存储卡，RS 422A接口，远程控制，报警继电器

Applications 应用
Recording of fast changeable process values, such as pressure, flow etc for industrial applications
For mounting in control panels, control cabinets or control desks
Electronic measuring data safety via memory card

Main attributes 主要属性
Measuring interval 125 ms
Versions: 1-channel. 2-channel, 3-channel or 4-channel
Digital and bargraph display
Recording width 100 mm, folded chart
Galvanically separate entrances
Pen offset with electronical compensation
Alpha-numeric print-out of date, time, chart speed, measured values, text of events, alarms and scale values
Accuracy, class 0,2
